European /Wooden Color 65 Casement Window Percentage Of Cut-turn
European /Wooden Color 65 casement window Percentage of cut-turn Model:Inward Casement Window Size Of Hole:1500×1500(mm) Size Of Window:1470×1470(mm) |  |

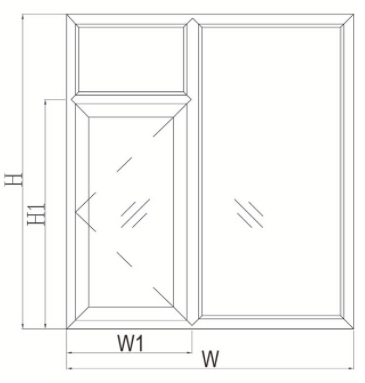

| W | W1 | H | H1 | |||||
| 1470 | 600 | 1470 | 1000 | |||||

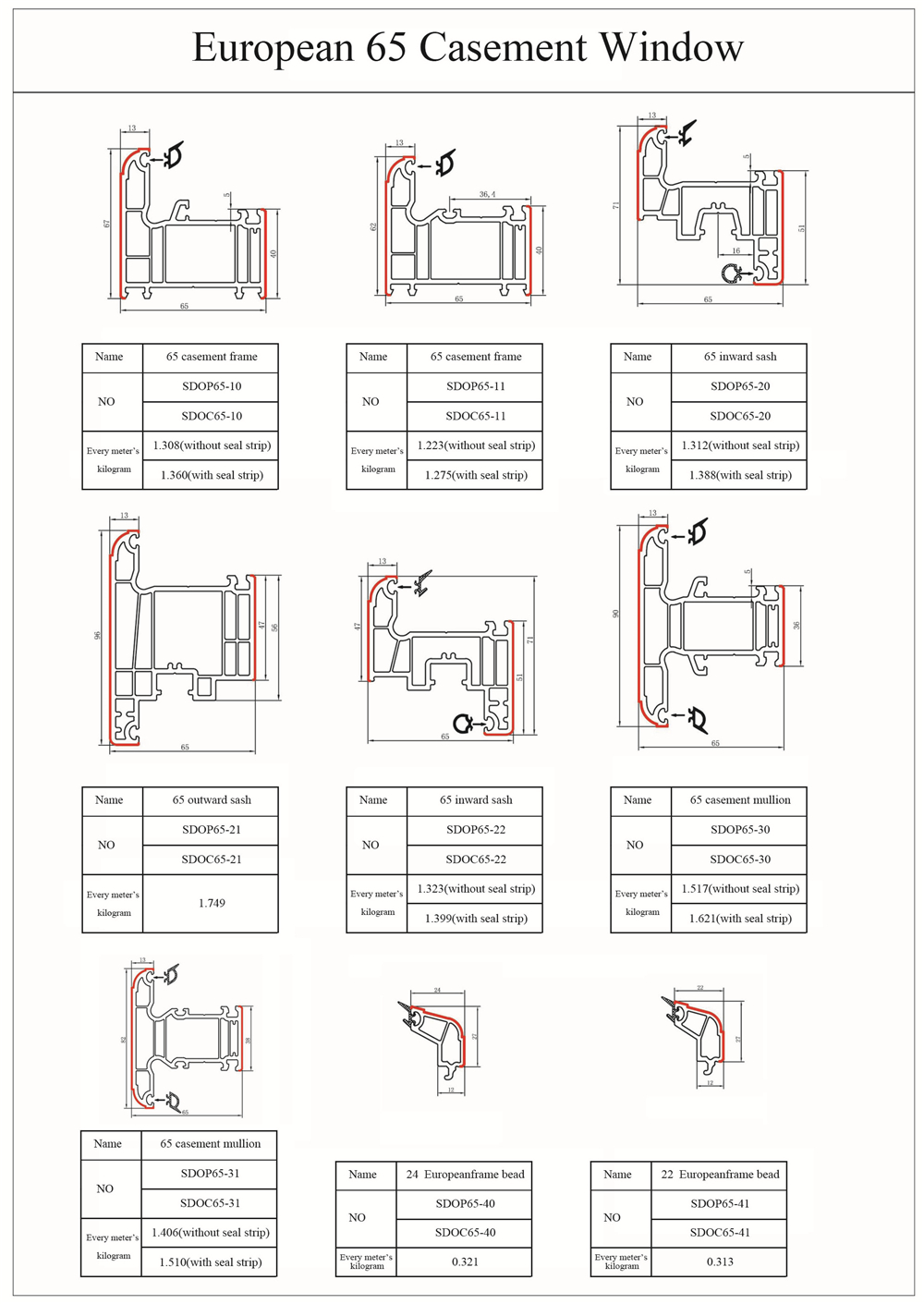

| Name | No | Profile's Length (mm) | Quantity (PCS) | Total of Length (mm) | Kilogram/Meter (g/m) | Amount (kg) | ||
| 65 casement frame | SDOP65-10 | 1476 | 2 | 5904 | 1308 | 7.72 | ||
| 1476 | 2 | |||||||
| 65 inward sash | SDOP65-20 | 564 | 2 | 3056 | 1312 | 4.01 | ||
| 964 | 2 | |||||||
| 24sash bead | SDOP65-42 | 456 | 2 | 2624 | 280 | 0.73 | ||
| 856 | 2 | |||||||
| 24frame bead | SDOP65-40 | 542 | 2 | 6312 | 321 | 2.03 | ||
| 412 | 2 | |||||||
| 812 | 2 | |||||||
| 1390 | 2 | |||||||
| 60 casement mullion | SDOP65-30 | 584 | 1 | 2016 | 1517 | 3.06 | ||
| 1432 | 1 | |||||||
| Area:M² | 2.16 | |||||||
| Amount (kg) | 17.55 | |||||||
| Percentage of cut-turn (M²/T) | With seal strip | 118.08 | ||||||
| Without seal strip | 123.12 | |||||||
Note:
1. Above form profile's length is for reference only.
2. Above form profile's kilogram/meter is theoretical date, for reference only.
 |  |
