SC 60 Casement Window Percentage of Cut-turn
SC 60 casement window Percentage of cut-turn Model: Inward Casement Window Size of Hole: 1500×1500(mm) Size of Window: 1470×1470(mm) |  |

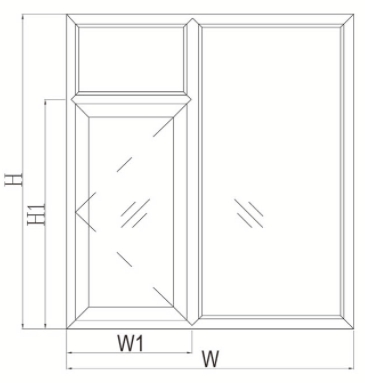

| W | W1 | H | H1 |  | ||
| 1470 | 600 | 1470 | 1000 | |||
| Name | No | Profile's Length (mm) | Quantity (PCS) | Total of Length (mm) | Kilogram/Mete (g/m) | Amount (kg) |
| 60casement fame | SPXC60-10 | 1476 | 2 | 5904 | 1067 | 6.30 |
| 1476 | 2 | |||||
| 60 inward sash | SPXC60-20B | 564 | 2 | 3056 | 1187 | 3.63 |
| 964 | 2 | |||||
| 17 bead | SPHD60-40 | 452 | 2 | 2608 | 200 | 0.52 |
| 852 | 2 | |||||
| 17 bead | SPHD60-40 | 542 | 2 | 6312 | 200 | 1.26 |
| 412 | 2 | |||||
| 812 | 2 | |||||
| 1390 | 2 | |||||
| 60casement mullion | SPXC60-30 | 584 | 1 | 2016 | 1144 | 2.31 |
| 1432 | 1 | |||||
| Area:M² | 2.1609 | |||||
| Amount (kg) | 14.0173 | |||||
Percentage ofcut-tum (M²/T) | With seal strip | 146.34 | ||||
| Without seal strip | 154.16 | |||||
Note:
1.Above form profile's length is for reference only.
2. Above form profile's kilogram/meter is theoretical date,for reference only.
 |  |
 |  |
 |  |
