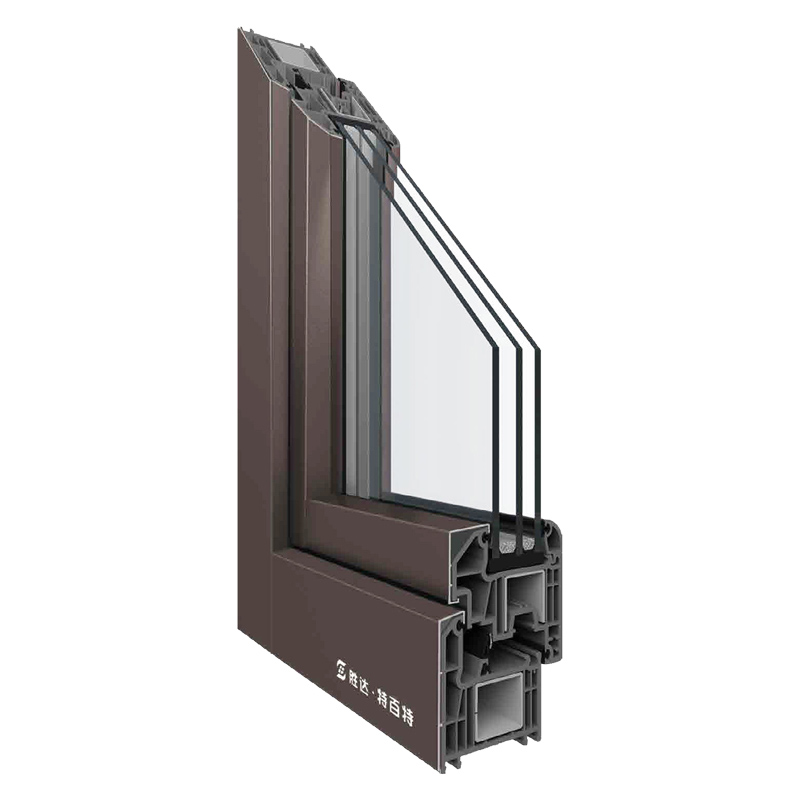

Three glass tempered insulated glass 5LOW-E+12A+5+12A+5LOW-E
Details
Three glass tempered insulated glass 5LOW-E+12A+5+12A+5LOW-E
2.9mm Profile wall thickness 2.9mm
Improve welding strength by 15% -20%

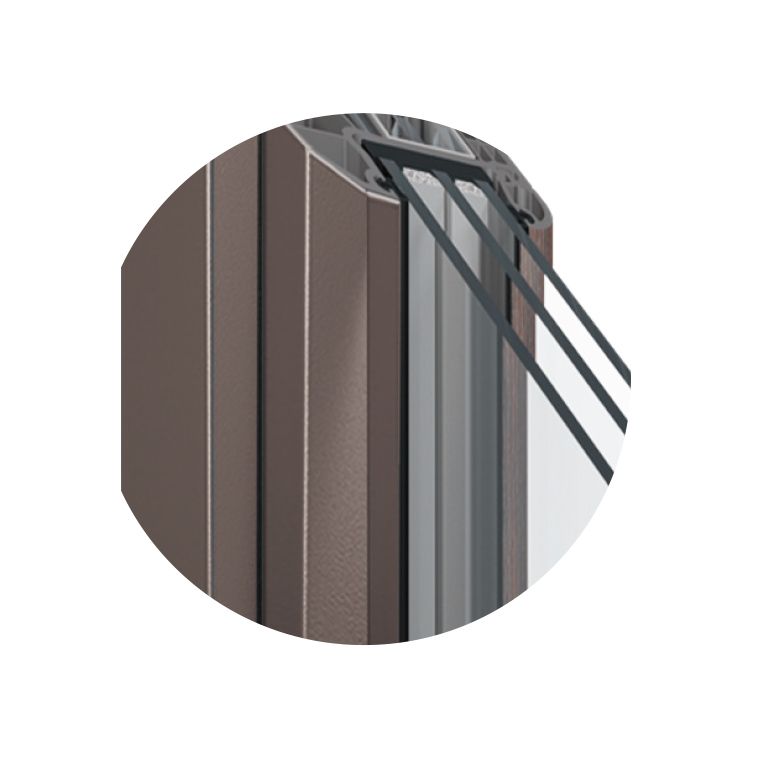

Solid and smooth aluminum coating, resistant to UV erosion
Inner yellow peach wood co extrusion
Environmentally friendly formula system, green and non-pollution
Recyclable
Simple folding design

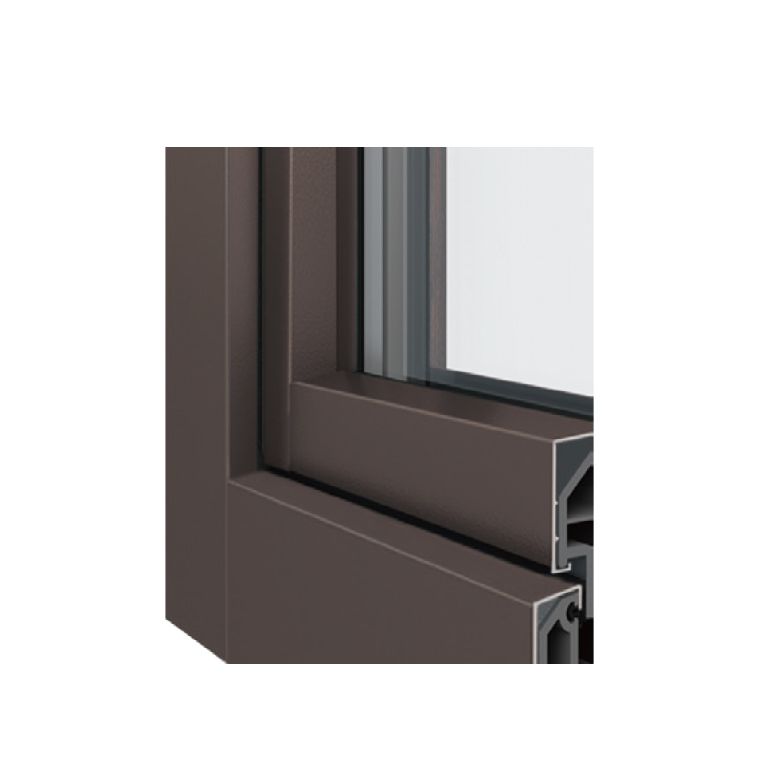

Right angle splicing
Patent designed glass trough plate
Effectively reducing heat transfer coefficient
EPDM Automotive grade EPDM adhesive strip

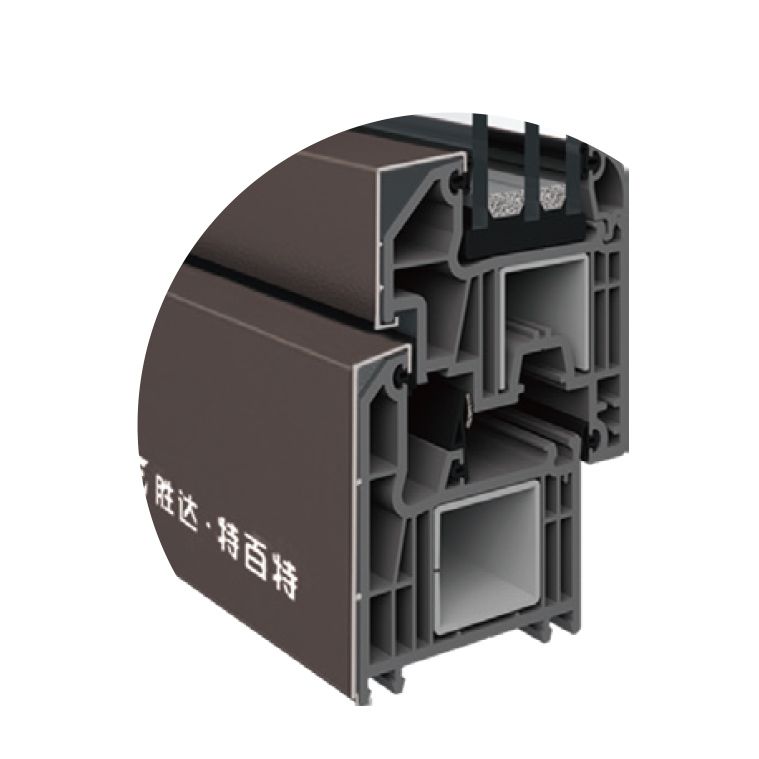

The six chambers structure provides better heat insulation and sound insulation.Profile thickness 70mm
Rectangular steel lining provides stronger rigidity for the entire window
Performance Index
Wind Resistance
LV6
Air Tightness
LV8
Sound Insulation
LV4
Thermal Insulation
LV8
Water Tightness
LV4
Fire Resistance Limit
1.0H
Technical Parameter
70mm window frame thickness
Six chambers and three seals
80mm window sash thickness
ROTO hardware
EPDM sealing strip
Class A Profile Wall thickness standard
Three glass configuration
Mechanical connection
