Three glass tempered insulated glass 5LOW-E+16Ar warm edge+5+16Ar+5LOW-E
Details
Three glass tempered insulated glass 5LOW-E+16Ar warm edge+5+16Ar+5LOW-E
3.0mm Profile wall thickness 3.0mm
A Beyond international Class A requirements
German RENOLIT professional lamination
Environmentally friendly formula system, green and non-pollution
Recyclable
Simple folding design
Better water tightness
Seamless welding technology
Patent designed glass trough plate
Effectively reducing heat transfer coefficient
Patent non thermal bridge lining design
Energy saving and fire-resistant
EPDM Automotive grade EPDM sponge rubber strip

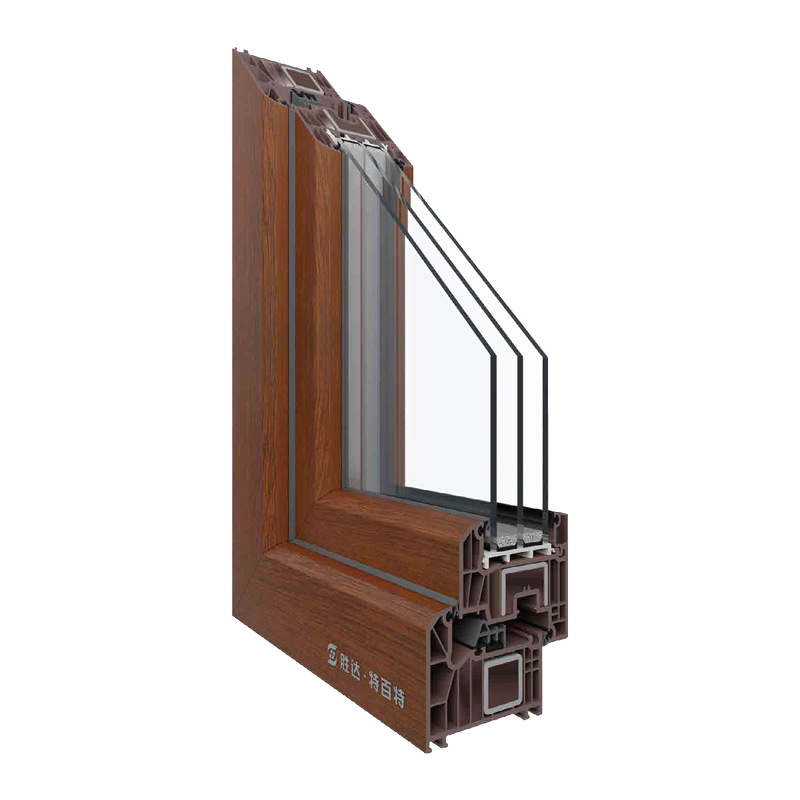

Seven chambers structure
Thermal insulation three seal design
Providing unparalleled insulation effect
Rectangular steel lining provides stronger rigidity for the entire window
Performance Index
Wind Resistance
LV9
Air Tightness
LV8
Sound Insulation
LV5
Thermal Insulation
LV10
Water Tightness
LV5
Fire Resistance Limit
1.0H
88mm window frame thickness

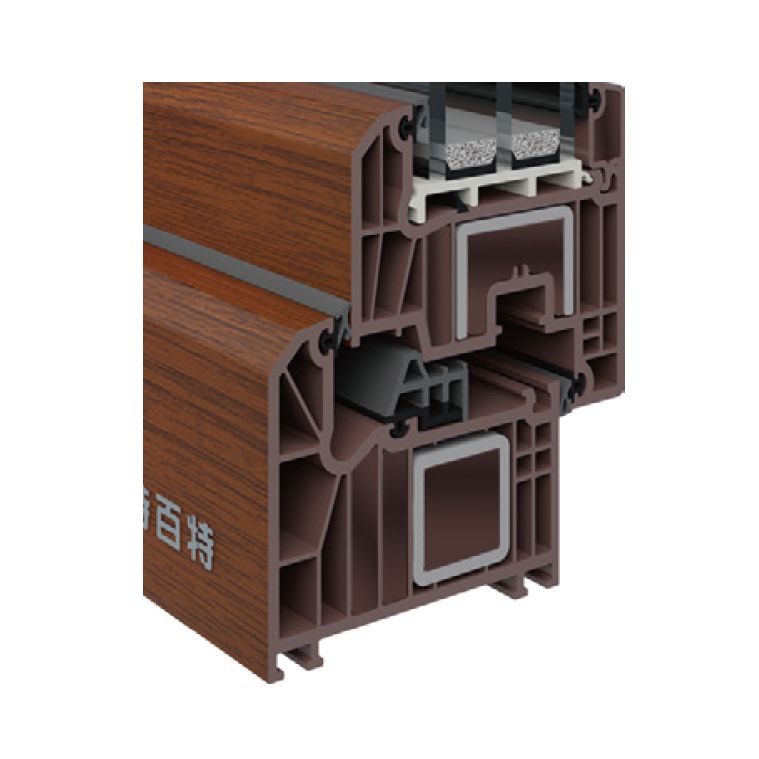

Seven chambers and three seals
88mm window sash thickness
ROTO hardware
HOPPE handle
EPDM sealing strip
Class A Profile Wall thickness standard

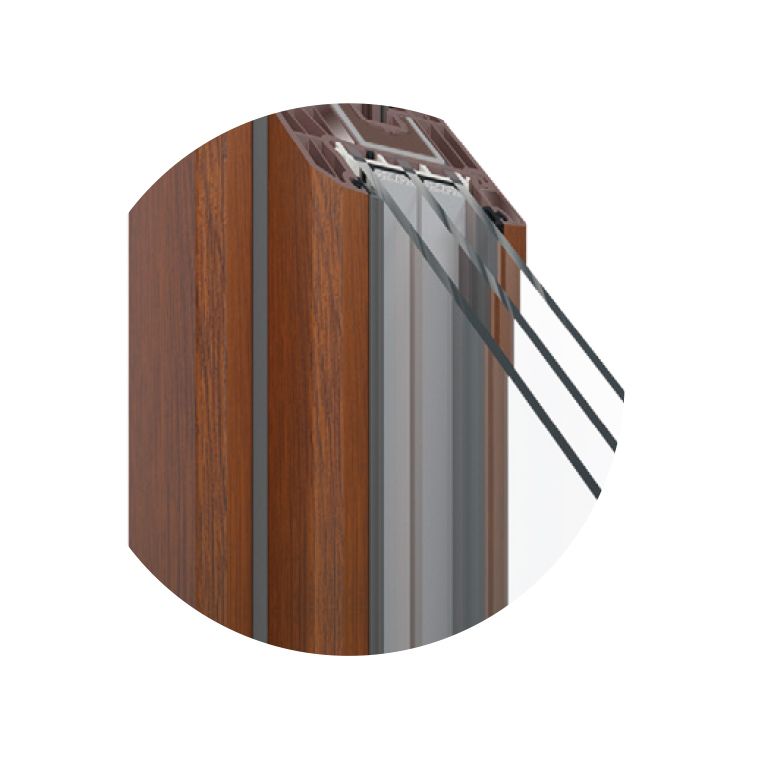

Three glass configuration
Mechanical connection
