Wooden Color Series

Wooden Color 65 Casement Window Profiles

The production of 65mm Casement Window Profiles consumes minimal energy and utilizes recycled water resources. It features a multi-chamber thermal insulation structure with a low thermal conductivity coefficient, resulting in significant insulation and energy-saving effects. Additionally, it possesses insulation and flame retardant properties, making it resistant to acid, alkali, and humid environments. This material is suitable for use in areas with large temperature variations and high levels of ultraviolet radiation due to its excellent anti-aging characteristics.

Details

Top-best 65mm uPVC Casement Window Profiles’ Features:




European /Wooden Color 65 Casement Window Percentage Of Cut-turn


European /Wooden Color 65 casement window

Percentage of cut-turn

Model:Inward Casement Window

Size Of Hole:1500×1500(mm)

Size Of Window:1470×1470(mm)

Wooden Color Series

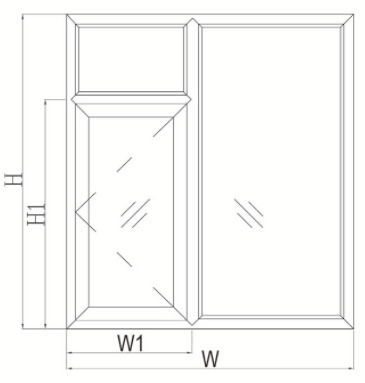

WW1HH1
1470 600 1470 1000
NameNoProfile's Length
(mm)
Quantity
(PCS)
Total of Length
(mm)
Kilogram/Meter
(g/m)
Amount
(kg)
65 casement frameSDOP65-101476 5904 1308 7.72
1476
65 inward sashSDOP65-20564 3056 1312 4.01
964
24sash beadSDOP65-42456 2624 280 0.73
856
24frame beadSDOP65-40542 6312 321 2.03
412
812
1390
60 casement mullionSDOP65-30584 2016 1517 3.06
1432
Area:M²
2.16
Amount (kg)
17.55
Percentage of cut-turn
   (M²/T)
With seal strip118.08
Without seal strip123.12


Note:

1. Above form profile's length is for reference only.

2. Above form profile's kilogram/meter is theoretical date, for reference only.

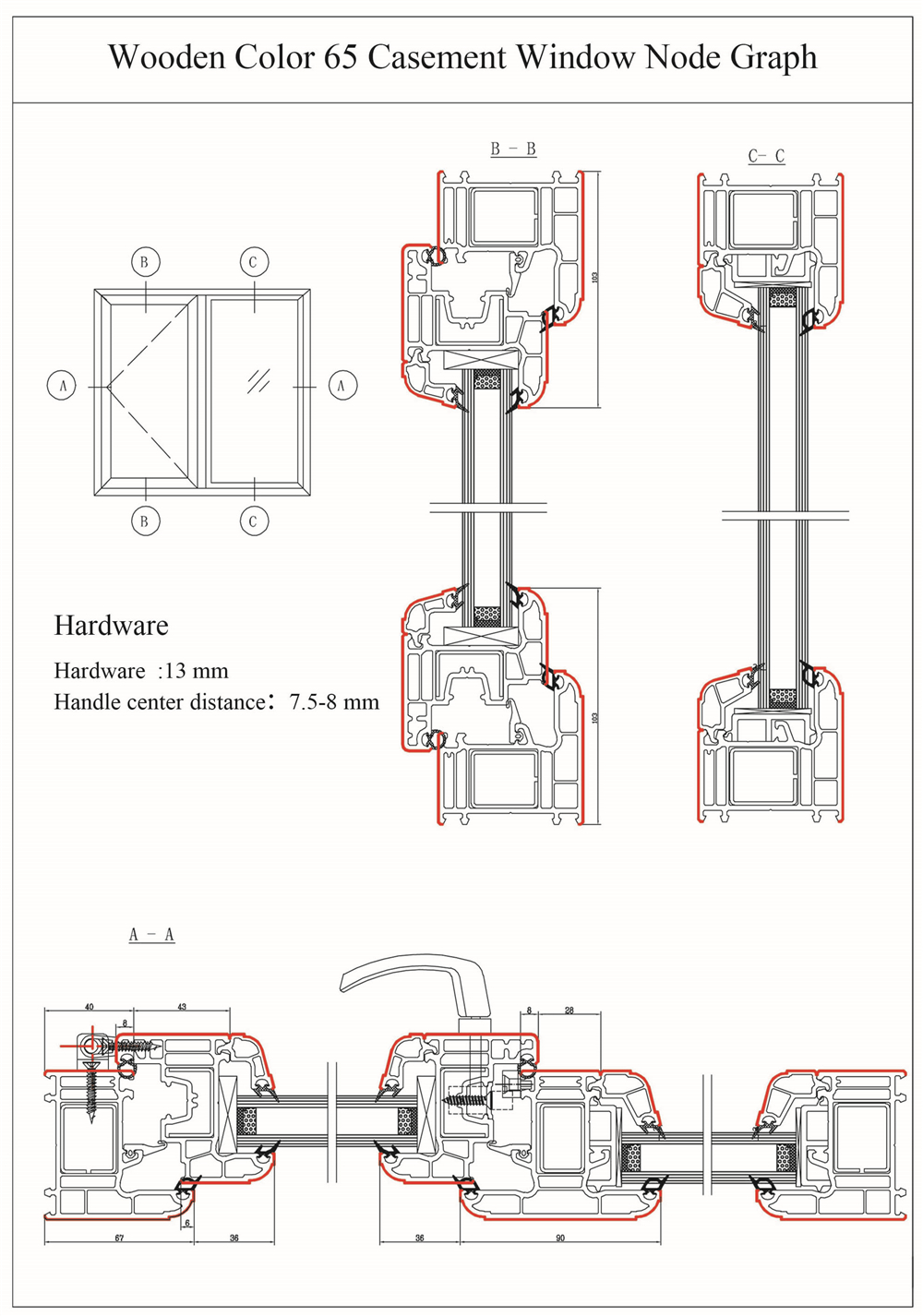

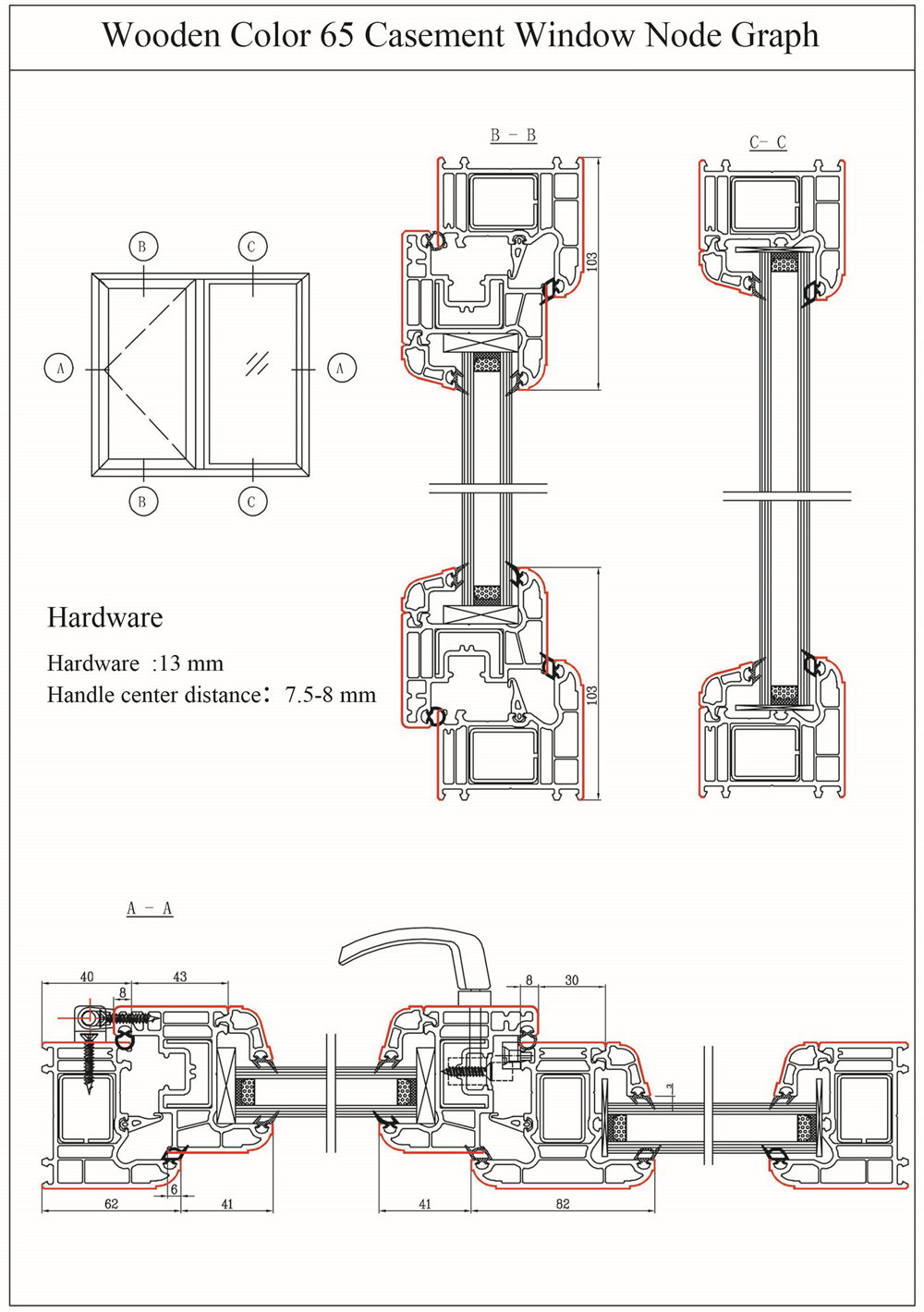

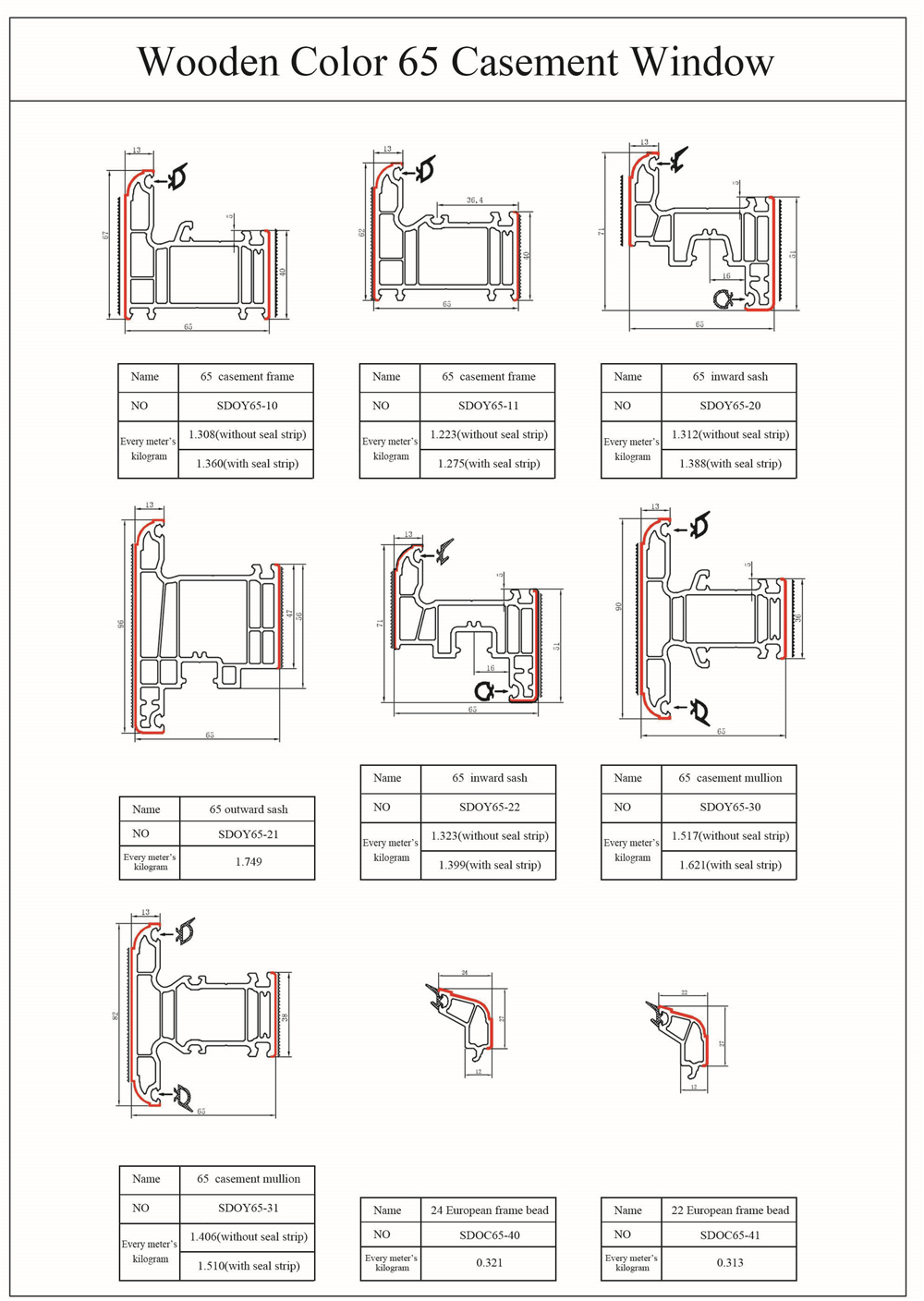

65mm uPVC Casement Window Profiles DrawingWooden Color Series 65 uPVC Casement Window Profiles Drawing

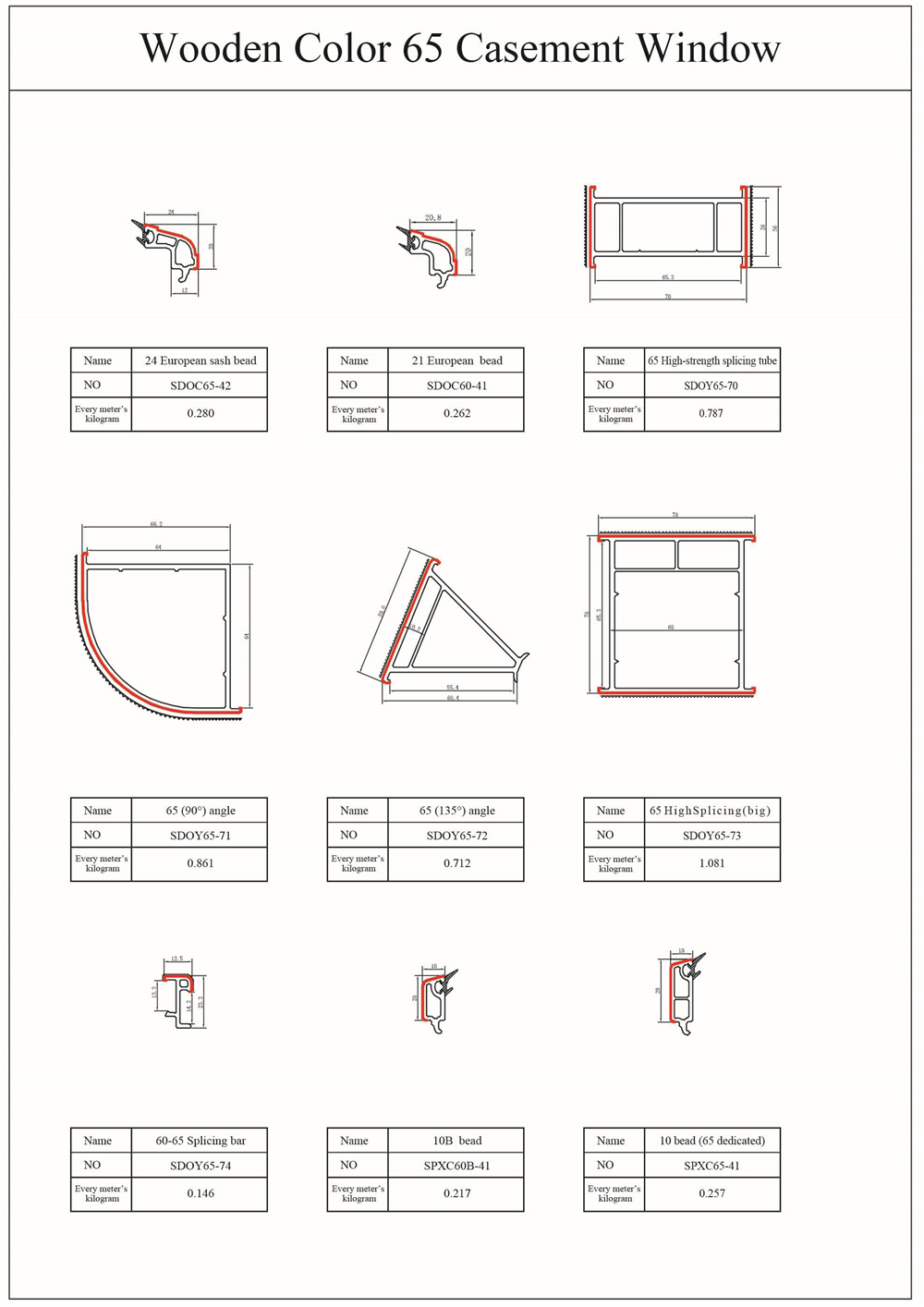

65 uPVC Casement Window Profiles DrawingWooden Color Series 65 uPVC Casement Window Profiles Drawing
